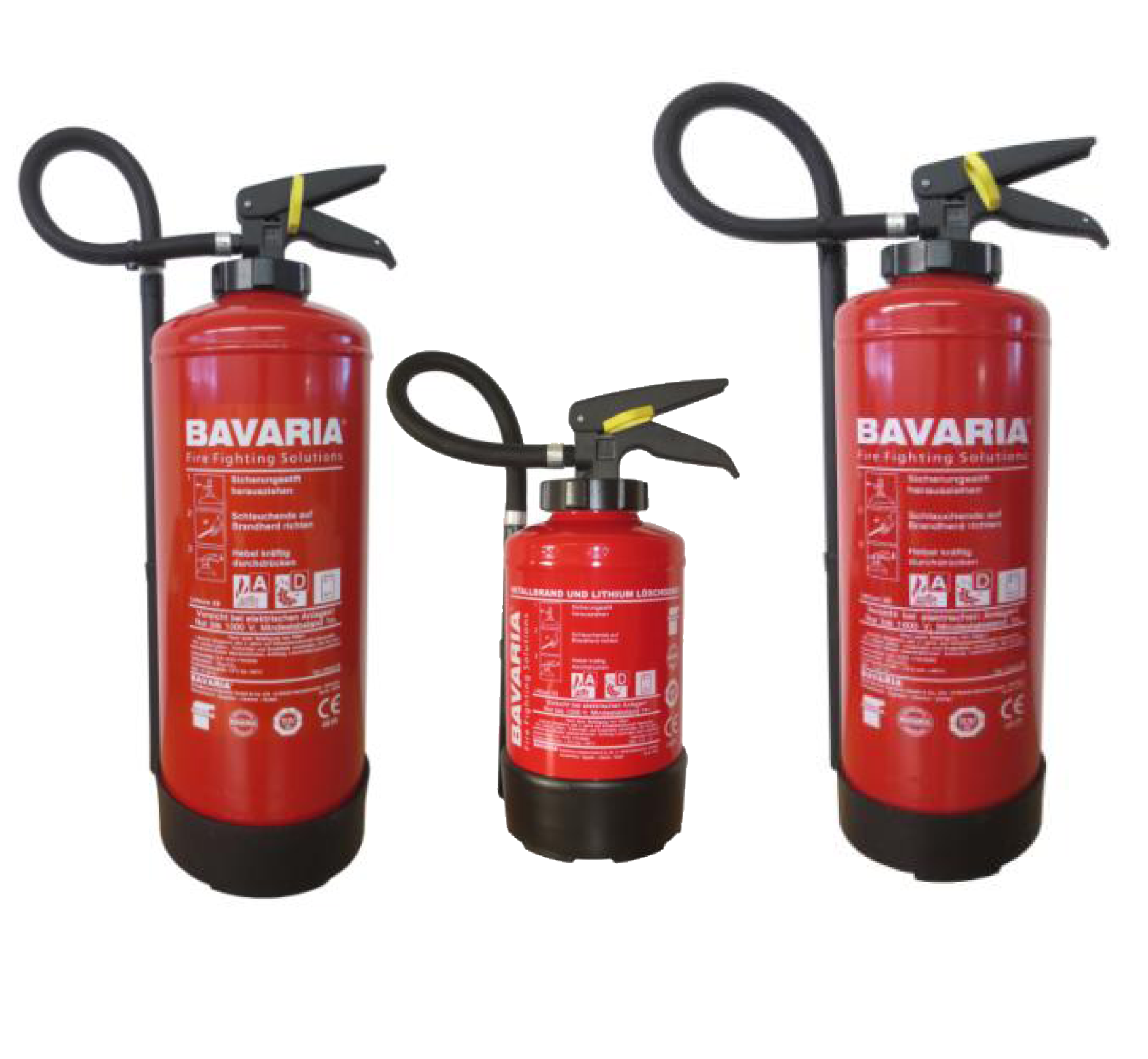

Lithium X

Applications:
BAVARIA Lithium X can effectively extinguish almost all types of metal fires and on the top, it is also stopping the spreading of the fire. Filled with highly effective, environmentally friendly extinguishing agent, which makes it possible, to extinguish highly aggressive fires such as lithium, magnesium and aluminium alloys as well as other metals. The extinguisher is also applicable for the lithium-ion batteries
Download Files
  • Features
  • Specifications

Characteristic:

  • The interruption of the extinguishing and also the intermittent usage is possible all the time.
  • Single lever valve, made of a high quality, glass fiber reinforced plastic, black coated aluminium cap nut.
  • High quality EPDM hose, with a lance, attached at the manufacturing.
  • Through the polyester coating of the cylinder, outstanding and long-lasting corrosion protection.
  • The polymer inner coating provides excellent and also long-term protection against any type of rust.
  • Suitable for electrical objects up to 1000 V, with a minimum distance of 1 m.
  • High quality wall bracket for the easy installation.
Amount of the agent 3 l 6 l 9 l
Testing object A D A D A D
Range of operating temperature From    5ºC   to   + 60ºC
Test pressure 30 bar 35 bar 35 bar
Bursting pressure Over 70 bar Over 70 bar Over 70 bar
Material of the valve PA 6 GF 30 PA 6 GF 30 PA 6 GF 30
Material of the cylinder DC 04 DC 04 DC 04
Propellant CO2 CO2 CO2
Amount of propellant 25 gr. 50 gr. 70 gr.
Type of agent Special type
Inner coating Polymer Polymer Polymer
Coating Polyester Polyester Polyester
Gross weight (approx.) 6,4 kg 11,2 kg 15,4 kg
Dimension (LxWxH) cm 30x15x44 25,5×15,5×57,5 29x19x58,7
Packaging cardboard cardboard cardboard
Range of throw approx. approx. 3 m approx. 3 m approx. 3 m
Functional time approx. approx. 90 sec. approx. 120 sec. approx. 180 sec.



Compliant with the European Standard DIN/EN3
TÜV-certified pressure cylinder
CE marked
Management System certified according to ISO 9001
