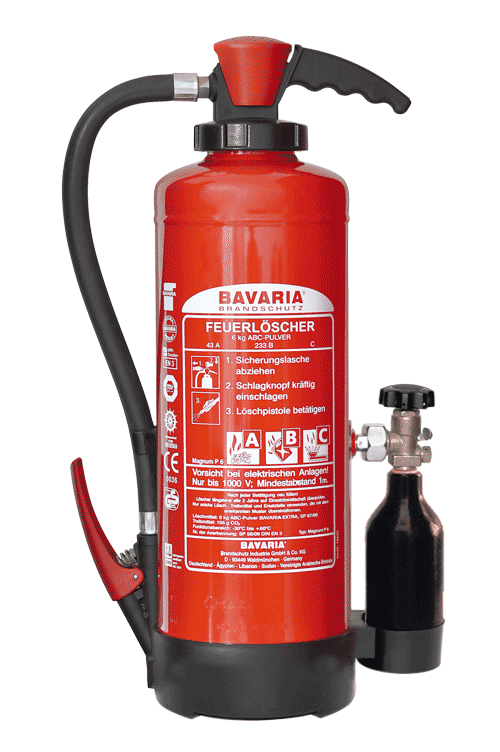

High extinguishing rating Allows intermittent and repeated operation Designed with a special engineered polymer head Equipped with a rechargeable external pressure cylinder Operated with a high pressure reinforced rubber hose and pistol for high maneuverability and control High quality surface treatment and 100 % red polyester coating Electricity and corrosion proof-protective base Supplied with a special hanging wall bracket Affords the highest extinguishing rating due to its special multipurpose BAVARIA dry chemical powder “BAVARIA Superlative Powder” Suitable for electrical fire up to 1000 V, at minimum distance 1 m
Technical Specification:
| Capacity | 6 kg | 9 kg | 12 kg | |
| Extinguishing Rating | 43A 233B C | 55A 233B C | 55A 233B C | |
| Operating Temperature Range* | -30 °C to +60 °C | -30 °C to +60 °C | -30 °C to +60 °C | |
| Testing Pressure | 35 bar | 35 bar | 35 bar | |
| Bursting Pressure | Over 70 bar | Over 70 bar | Over 70 bar | |
| Valve Material | Special engineered polymer | |||
| Discharge Pistol Material | Special engineered polymer | |||
| Shell Material | DC 04 Steel according to DIN EN 10130 | |||
| Extinguishing Agent | MAP-based “ BAVARIA Superlative Powder“ | |||
| Expellant Gas Weight | 160 gm | 270 gm | 290 gm | |
| Propellant Gas | CO2 | CO2 | CO2 | |
| Paint Finish | Surface treatment and 100% polyester coating | |||
| Approx. Gross Weight | 11.8 kg | 17.2 kg | 20.4 kg | |
| Approx. Unit Dimension (lxwxh) cm | 28.0 x 17.5 x 54.0 | 30.0 x 21.0 x 56.0 | 30.0 x 20.5 x 68.0 | |
| Option | Over pressure mechanical safety valve at extra cost upon request | |||
| * This product is certified to fully operate at temperatures upto +70°C according to ES8442 Standard | ||||
Warranty:
| Period of Warranty | 2 Years | |||
| Coverage of the Warranty | Against material failure and production defects | |||
| Method of Warranty Coverage | Limited to the replacement of the defected part or product after verification that the failure is covered by the scope of the warranty | |||
| Warranty Exclusions | Failures due to misuse, mishandling, or inspection or repair by an unauthorized dealer or entity | |||
European Standard DIN/EN3 Certified
The extinguishing media (dry chemical powder) is certified according to the European Norm EN 615
Egyptian Standard ES 8442 Certified
TÜV (SÜD Deutschland) Approved Pressure Vessel
Awarded the European (CE) mark and the German Geprüfte Sicherheit (GS) Mark
The Company is Certified according to Quality, Environment and OHSAS Management Systems ISO 9001, ISO 14001 & BS-OHSAS 18001
Bavaria Laboratory Accredited According to the ISO/IEC 17025
