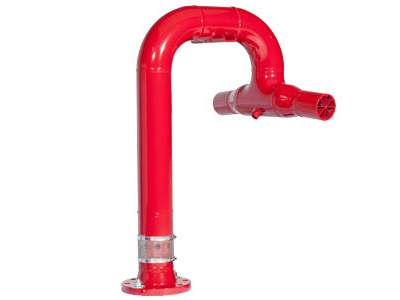

Number of Point and Shoot Wands for Full
Full Encirclement Seal Protection
240′ Coverage From Each
| Tank Diameter | No. of Foam Wands |
| Up to 76′ | 1 |
| 77′ – 153′ | 2 |
| 154′ -229′ | 3 |
| 230′ -306′ | 4 |
| 307′ – 382′ | 5 |
| 383′ – 458′ | 6 |
Notes:
Each Point & Shoot System comes complete with a flange Kit – bolts, nuts, and gasket (1 for each flanged
connection)
Point and Shoot Nozzles are also available with backboard to elevate nozzle from tank interior.
Technical Information
Point & Shoot Foam Wand Discharge Flow Rate
| Pressure | Flow |
| 100 | 275 |
| 95 | 268 |
| 90 | 261 |
| 85 | 254 |
| 80 | 246 |
| 75 | 238 |
| 70 | 230 |
| 65 | 222 |
| 60 | 213 |
| 55 | 204 |
| 50 | 194 |
| 45 | 184 |
| 40 | 174 |
