Voice Evacuation Systems

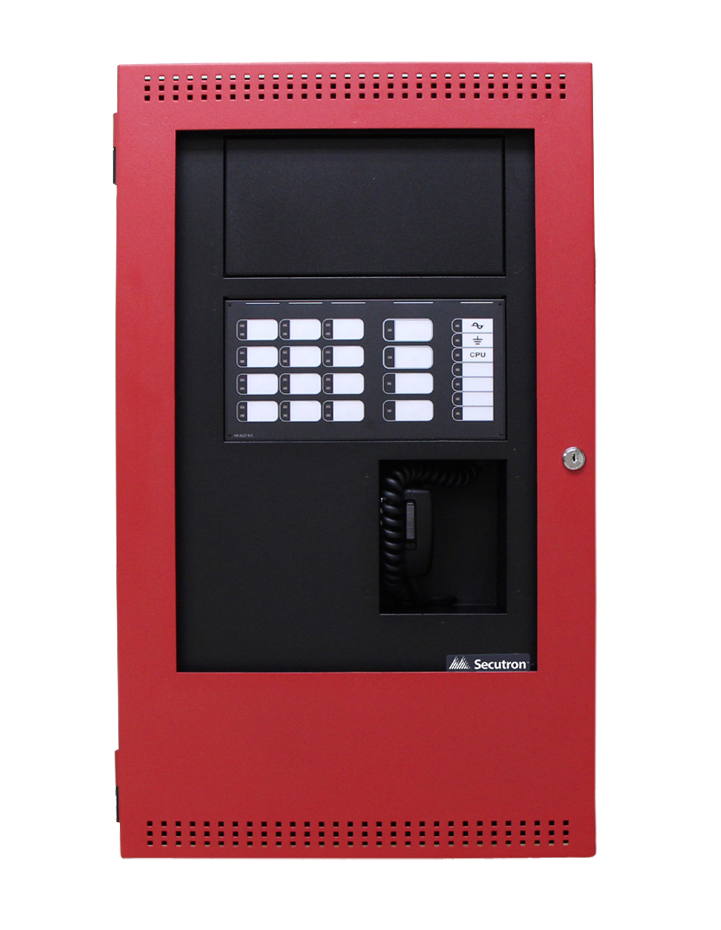

  • Audio Max

    Features

    • Up to 60 watts per enclosure (2 X 30W amplifiers) and up to 300 watts per system
    • 2 X 2.5A regulated 24V output for horns and strobes (NAC). System expandable to 12 X 2.5A
    • Class A or Class B Speaker and NAC wiring
    • Field selectable 25V or 70.7V audio output
    • Comes with standard digital messages for fire, emergency, evacuation, weather, and all clear
    • Select from up to 14 digital messages at the panel
    • Custom message upload using the software configurator
    • Stores up to 12 minutes of audio messages
    • Master microphone input with push-to-talk (PTT)
    • Supports up to 6 remote microphones and/or LOCs
    • Use as a separate audio system or as part of a fire alarm system
    • Two inputs for activation by conventional fire alarm systems using relays
    • Two strobe inputs for synchronization and activation
    • Signalling Line Circuit (SLC) input for activation and communication with Secutron compatible Fire Alarm Control Panels
    • Battery backup (up to 75AH charge capacity)
    • Dedicated Trouble, AC Fail, and Alarm relay outputs
    • Audio system supports up to 6 panels in total (one Master Panel with 5 Booster Panels)
    • 12 expandable up to 36 Programmable Switches
    • Auxiliary 24V supply (up to 0.2A)
    • ULC, UL approved, CSFM pending
