• Listed to UL 864, 9th edition

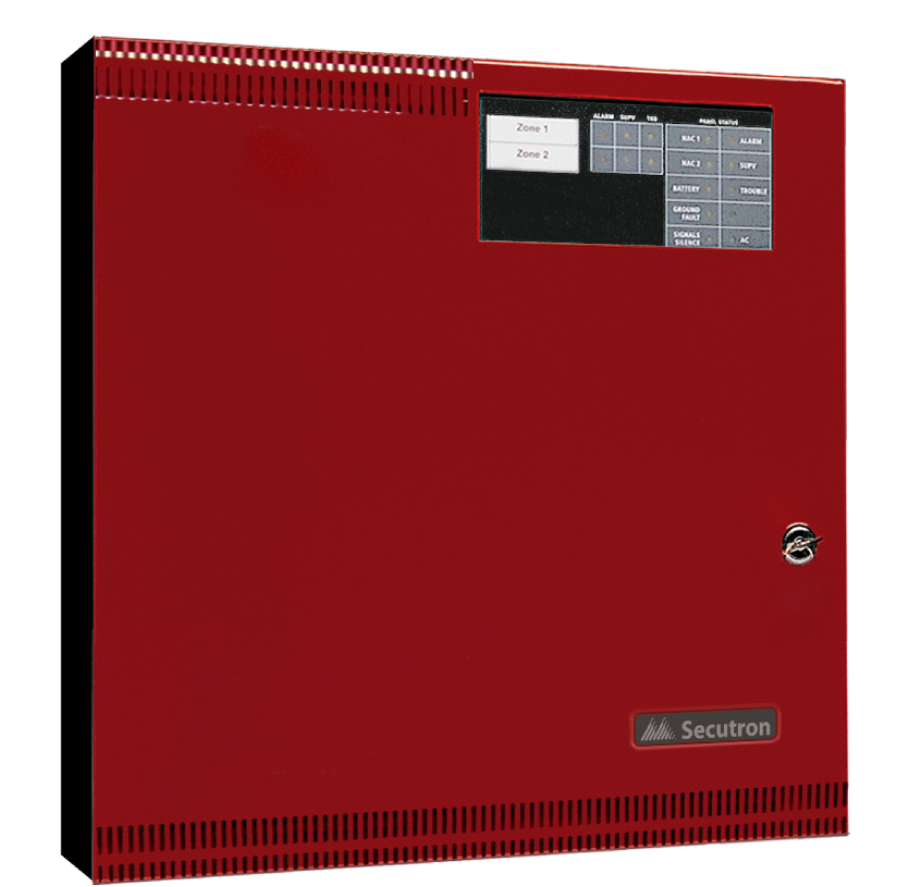

• 2 Style B (Class ‘B’) dual-use zones
• 2 Style Y (Class ‘B’) notification appliance circuits
• 6 Amp power supply
• 500mA of Aux. power
• Common alarm relay
• Common trouble relay
• Integral battery charger
• ‘Secur-Bus’ for dialer and remote annunciation
• Event buffer
• Six programmable zone options
• Class A capability, both NAC and Zones
• One-man walk test
• Programmable NAC silence timer
• 3 LEDs per zone
• Front panel programming
Optional Modules:
• City tie/polarity reversal module
• Relay module
• Style D (Class A) zone module
• Remote 5 zone LED annunciator
• Flush trim ring
No images found.
Optional Modules:
No images found.

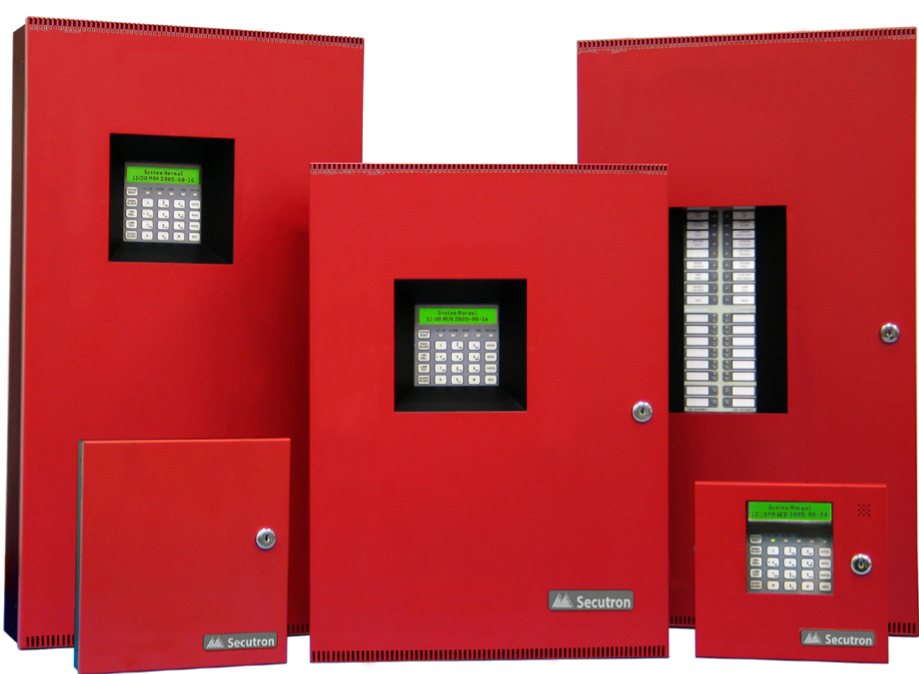

MR-2306-DDR Six Zone LCD Display Fire Alarm Control Panel
The MR-2306-DDR is equipped with six Class “B” (Style “B”) initiating circuits and two Class “B” (Style “Y”) indicating circuits rated @ 1.7 Amps maximum.
No images found.
MR-2312-LDR Twelve Zone LED Display Fire Alarm Control Panel with UDACT/Digital Communicator The MR-2312-LDR is equipped with twelve Class “B” (Style “B”) initiating circuits and four Class “B” (Style “Y”) indicating circuits rated @ 1.7 Amps maximum. (Total of 5 Amps)
No images found.
<div style=”text-align: justify;”> <span style=”color: black;”><span style=”font-family: verdana, sans-serif;”><span style=”font-size: 10pt;”>MR-2312-DDR Twelve Zone LCD Display Fire Alarm Control Panel with UDACT/Digital Communicator </span></span></span><span style=”color: black;”><span style=”font-family: verdana, sans-serif;”><span style=”font-size: 10pt;”>The MR-2312-DDR is equipped with twelve Class “B” (Style “B”) initiating circuits and four Class “B” (Style “Y”) indicating circuits @ 1.7 Amps maximum. (Total of 5 Amps).</span></span></span></div>
