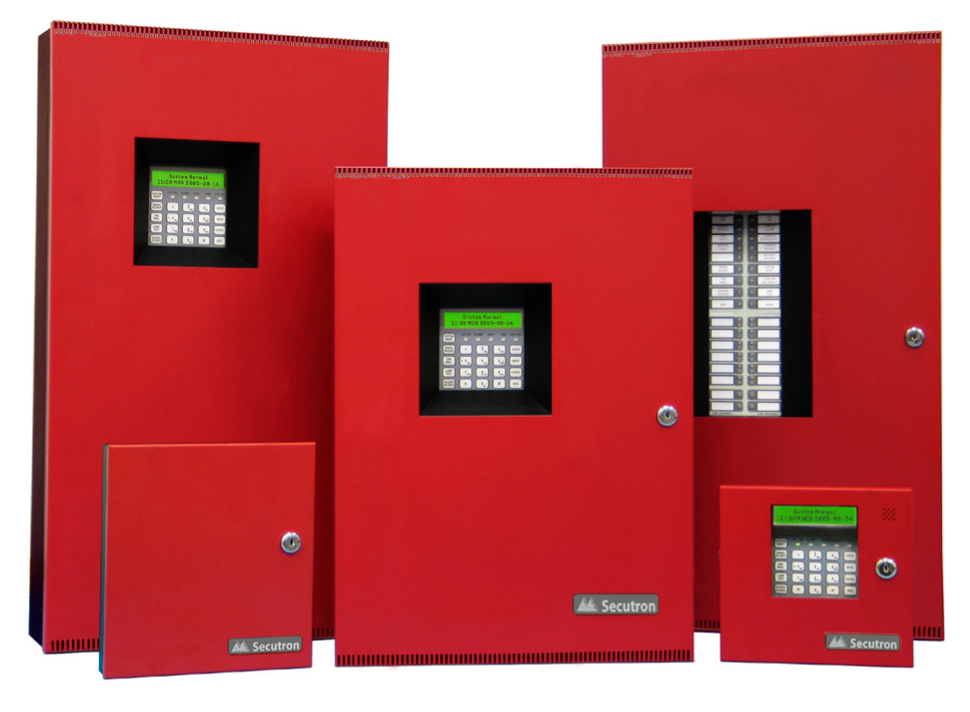

• Listed to UL 864, 9th edition.Available in six and twelve zone models
• Available in LED and LCD Display configurations
• LCD Display versions are equipped with a 2 line by 20 character back-lit LCD display and numerical
keypad
• Integrated UDACT/Digital Communicator on select models
• Front panel and PC programmable
• LED Display versions are front panel (using CFG-300 configuration tool) and PC programmable
• Remote upload/download capabilities
• Base panel is equipped with Class “B” (Style “B”) initiating circuits which may be configured as Class “A” (Style “D”) using a Class “A” converter module
• Initiating circuits may be configured as Alarm, Verified Alarm, Waterflow Alarm, Sprinkler Alarm, Latching or Non-Latching Supervisory, Monitor and Trouble- Only
• Base panel is equipped with Class “B” (Style “Y”) indicating circuits which may be configured as Class “A” (Style “Z”) using a Class “A” signal converter module
• Audible signals may be configured for Steady, Temporal Code, California Code and March Time
• Indicating Circuits may be configured as Silenceable or Non-Silenceable for both signals and strobes
• Built-in sync protocols for the following strobe manufacturers: Mircom, Amseco, System Sensor,
Gentex, Faraday and Wheelock
• Relay contacts for Common Alarm, Auxiliary/Alarm (Disconnectable), Common Supervisory and Common Trouble
• Configurable Signal Silence Inhibit, Auto Signal Silence and One-Man Walk Test
• Subsequent Alarm, Supervisory, and Trouble operation
• RS-485 Interface for Remote LED Annunciators, LCD Annunciators and Remote Smart Relay Modules
• Two event history logs comprised of a 200 event alarm log for alarm related events and a 200 event general log for all other events
• 5 Amp Power Supply
• Optional modules for additional internal relay circuits and City Tie/Polarity Reversal
• Optional trim rings for semi-flush mounting
• Listed to UL 864, 9th edition• Available in six and twelve zone models
• Available in LED and LCD Display configurations
• LCD Display versions are equipped with a 2 line by 20 character back-lit LCD display and numerical keypad
• Integrated UDACT/Digital Communicator on select models
• Front panel and PC programmable
• LED Display versions are front panel (using CFG-300 configuration tool) and PC programmable
• Remote upload/download capabilities
• Base panel is equipped with Class “B” (Style “B”) initiating circuits which may be configured as Class “A” (Style “D”) using a Class “A” converter module
• Initiating circuits may be configured as Alarm, Verified Alarm, Waterflow Alarm, Sprinkler Alarm, Latching or Non-Latching Supervisory, Monitor and Trouble- Only
• Base panel is equipped with Class “B” (Style “Y”) indicating circuits which may be configured as Class “A” (Style “Z”) using a Class “A” signal converter module
• Audible signals may be configured for Steady, Temporal Code, California Code and March Time
• Indicating Circuits may be configured as Silenceable or Non-Silenceable for both signals and strobes
• Built-in sync protocols for the following strobe manufacturers: Mircom, Amseco, System Sensor, Gentex, Faraday and Wheelock
• Relay contacts for Common Alarm, Auxiliary/Alarm (Disconnectable), Common Supervisory and Common Trouble
• Configurable Signal Silence Inhibit, Auto Signal Silence and One-Man Walk Test
• Subsequent Alarm, Supervisory, and Trouble operation
• RS-485 Interface for Remote LED Annunciators, LCD Annunciators and Remote Smart Relay Modules
• Two event history logs comprised of a 200 event alarm log for alarm related events and a 200 event general log for all other events
• 5 Amp Power Supply
• Optional modules for additional internal relay circuits and City Tie/Polarity Reversal
• Optional trim rings for semi-flush mounting

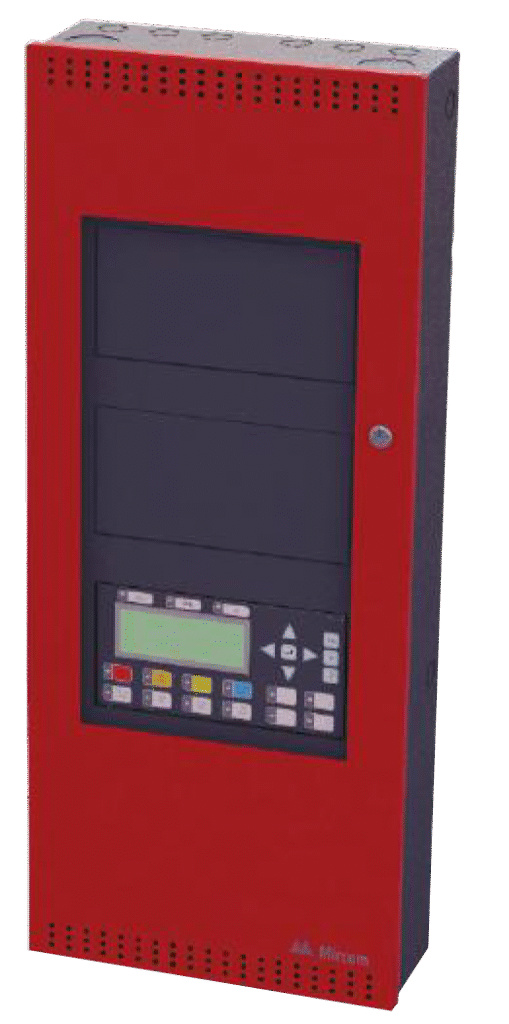

Fire Alarm Control:
• One expandable to nine Intelligent Signaling Line Circuits (SLC)
• Modular design
• Each SLC is capable of supporting 159 Analog Sensors and 159 Addressable Modules which can be wired in Style 6 or 7 (Class A) or Style 4 (Class B)
• Four Style Z/Y (Class A/B) Notification Appliance Circuits
rated at 1.7 Amps each
• System has the ability to mix CLIP and AP devices on the same loop
• Large 4 by 20 character Back-lit LCD Display with user friendly menu
• Supported languages: English, French, Arabic* and Hebrew* (*960 character back-lit LCD display only)
• Correlatable Switch Inputs which allow for multi-functional outputs
• Four Status Queues with selector switches and LEDs for Alarm, Supervisory, Trouble and Monitor
• Auxiliary relay contacts for Common Alarm, Common Supervisory and Common Trouble
• Group bypass with built-in false alarm prevention technology
• RS-232 output for remote system printer or CRT
• Two Event History Logs comprised of a 6000 event alarm history log for alarm related events and a 6000 event log for all events
• Supports three configuration files (current, previous and next configuration) with “hot swap” support
• Supports Conventional Hardwire Adder Modules
• Built-in One Man Walk Test operation
• Configurable for Canadian Two Stage operation
• Configurable for Coded Operation
• Capability to adjust Intelligent Smoke Detector sensitivity levels
• Real time 3D graphical monitoring and control using Open Graphic Navigator™
• BACnet support
• Supports Boolean logic functions
• Built-in Ethernet port
• Remote diagnostics via a built-in web server
• UL listed for Smoke Control
Network Features:
• Up to 63 nodes
• Peer-to-peer network communications
• Style 4 (Class B) or Style 6 or 7 (Class A) wiring configuration
• Proprietary Arcnet Network Communications protocol
• Supports copper and/or fiber optic network cable
• Provide the same functions as the main display on the MMX Series fire alarm control units

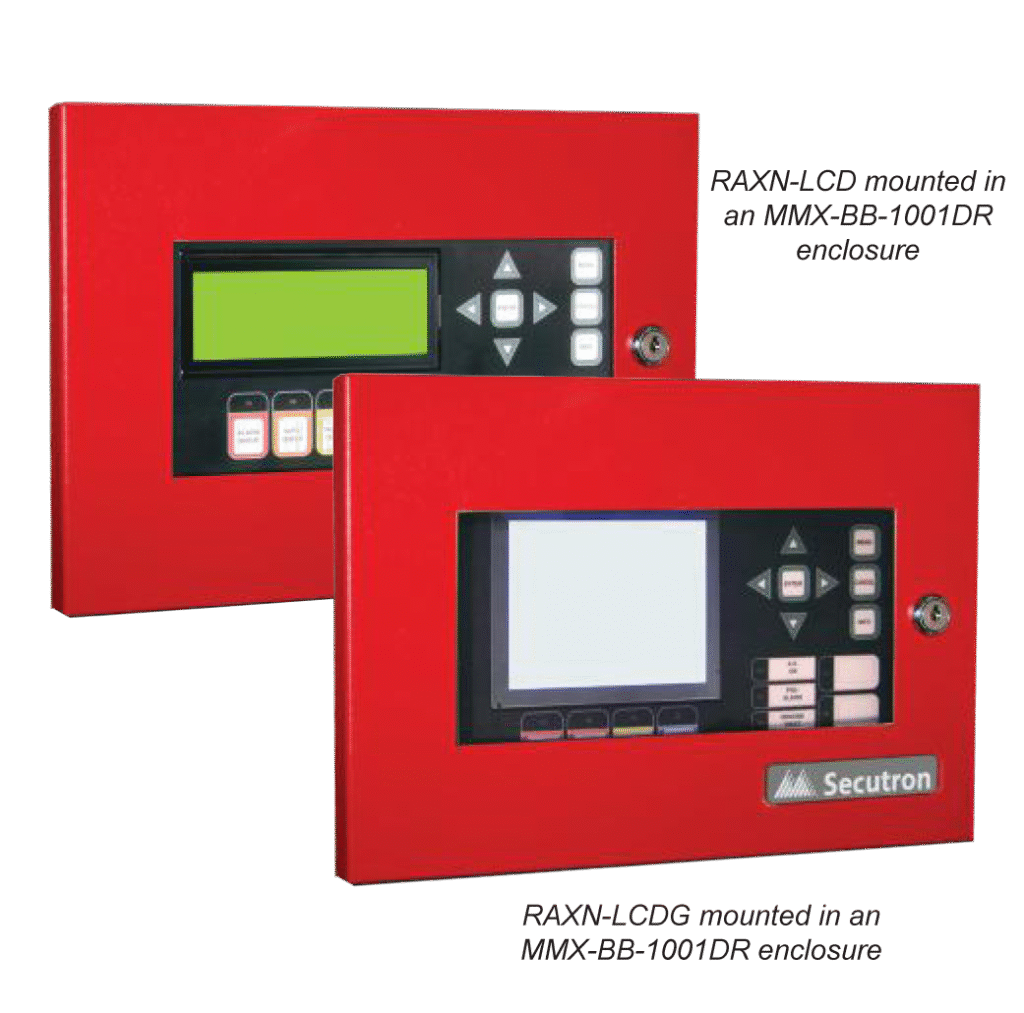

• Available in two models
– Large 80 character (4×20) back-lit LCD display
– 960 character (24×40) graphical back-lit LCD display
• Connect to any node to annunciate the full network system or selected network nodes
• Do not take up a node address
• Easy to use menu system complete with a directional keypad and switches
• Four Status Queues with selector switches and LEDs for Alarm, Supervisory, Trouble and Monitor to sort events
• Support programmable modules and annunciator modules
• RAXN-LCDG displays nine events per page with each event displayed over 2 lines with 40 characters per line
• RAXN-LCDG meets Canadian ULC sequential display requirements
• Both models can mount in a MMX Series annunciator enclosure
