• Provide the same functions as the main display on the MMX Series fire alarm control units
• Available in two models
– Large 80 character (4×20) back-lit LCD display
– 960 character (24×40) graphical back-lit LCD display
• Connect to any node to annunciate the full network system or selected network nodes
• Do not take up a node address
• Easy to use menu system complete with a directional keypad and switches
• Four Status Queues with selector switches and LEDs for Alarm, Supervisory, Trouble and Monitor to sort events
• Support programmable modules and annunciator modules
• RAXN-LCDG displays nine events per page with each event displayed over 2 lines with 40 characters per line
• RAXN-LCDG meets Canadian ULC sequential display requirements

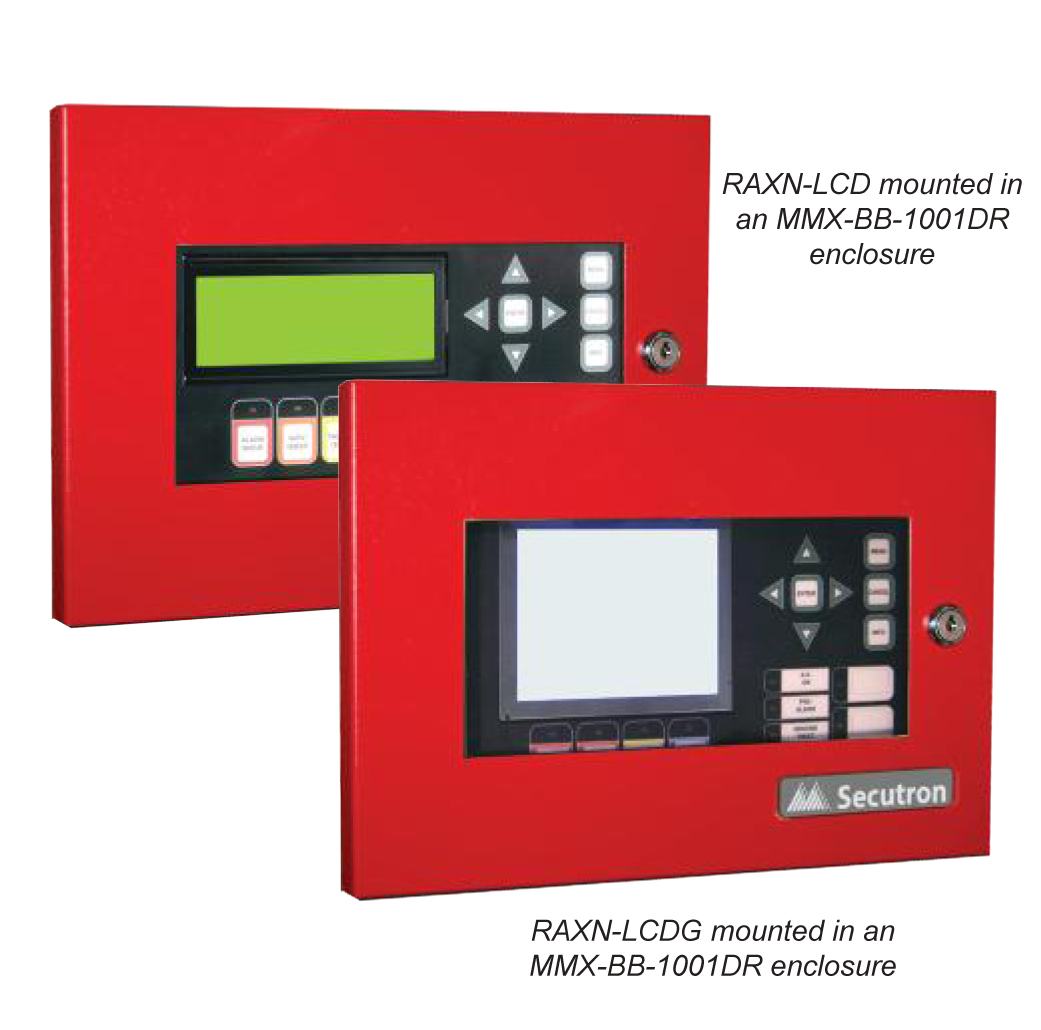

• Both models can mount in a MMX Series annunciator enclosure
| Model | Dimensions |
| MMX-BB-1001DR | 9”H x 12.75”W x 1.85”D |
| MMX-BB-1002DR | 18”H x 12.75”W x 1.85”D |
| MMX-BB-1003DR | 26.4”H x 12.75”W x 1.85”D |
| MMX-BB-1008DR | 33”H x 22.5”W x 1.85”D |
| MMX-BB-1012DR | 45”H x 22.5”W x 11.85”D |
