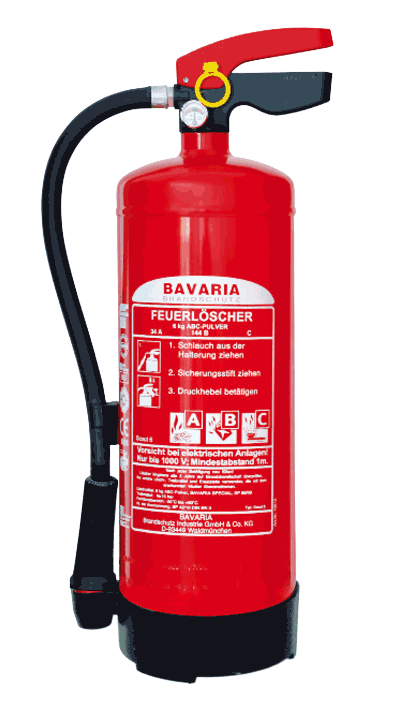

BAVARIA SCOUT is designed for protecting low hazard areas, such as industrial and commercial complexes, warehouses, residential buildings, and vehicles
|
Technical Specification:
|
|
|
|
Capacity
|
4 kg
|
6 kg
|
|
Extinguishing Rating
|
27A 113B C
|
34A 144B C
|
|
Operating Temperature Range*
|
-30 °C to +60 °C
|
-30 °C to +60 °C
|
|
Testing Pressure
|
35 bar
|
35 bar
|
|
Bursting Pressure
|
Over 70 bar
|
Over 70 bar
|
|
Valve Material
|
Special engineered polymer valve
|
|
|
Discharge Material
|
Hose with special engineered polymer nozzle
|
|
|
Shell Material
|
DC 04 Steel according to DIN EN 10130
|
|
|
Extinguishing Agent
|
MAP-based "Superlative powder"
|
|
|
Paint Finish
|
Surface treatment and 100% polyester coating
|
|
|
Approx. Gross Weight
|
7.850 kg
|
10.500 kg
|
|
Approx. Unit Dimension (lxwxh)
|
23.0 x 18.0 x 47.0 cm
|
25.5 x 17.5 x 56.5 cm
|
|
Option
|
Electricity and corrosion-proof protective base at Extra cost
|
|
|
* This product is certified to fully operate at temperatures up to +70 °C according to ES 734 Standard
|
||
|
Warranty:
|
||
|
Period of Warranty
|
2 Years
|
|
|
Coverage of the Warranty
|
Against material failure and production defects
|
|
|
Method of Warranty Coverage
|
Limited to the replacement of the defected part or product after verification that the failure is covered by the scope of the warranty
|
|
|
Warranty Exclusions
|
Failures due to misuse, mishandling, or inspection or repair by an unauthorized dealer or entity
|
|
|
|
|
|
European Standard DIN/EN3 Certified
The extinguishing media (dry chemical powder) is certified according to the European Norm EN 615
Egyptian Standard ES 734 Certified
TÜV (SÜD Deutschland) Approved Pressure Vessel
Awarded the European (CE ) mark and the German Geprüfte Sicherheit (GS) Mark
The Company is certified according to Quality, Environment and OHSAS Management Systems ISO 9001, ISO 14001 & BS-OHSAS 18001
Bavaria Laboratory Accredited According to the ISO/IEC 17025
