Products Details

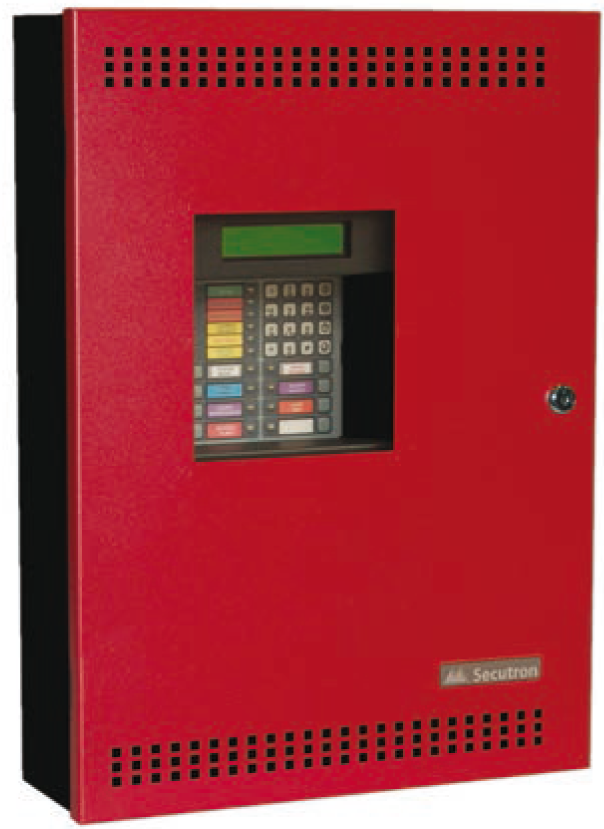

MR-2350-60-DR Intelligent Fire Alarm Control Unit

Applications:

General Application From the smallest business to the largest facility or campus, small conventional panels feature large capacity power supplies and easy front panel programming while large intelligent systems lead the market in sophisticated features including distributed emergency audio and are remarkably easy to configure and program. In addition to systems, Secutron™ also offers the most complete line of advanced detection industry with the advanced system features required by emerging fire codes and new protection design practices. Large intelligent networked systems support fully redundant network modularity, graphic display annunciation/monitoring, building management system integration, programmable smoke control and multi-channel emergency communications across buildings, campuses or communities. Secutron™ systems are also supported with the largest selection of detectors, signaling devices and accessory devices, including intelligent power supplies. MMX Network Fire Detect

Download Files

General Application
From the smallest business to the largest facility or campus, small conventional panels feature large capacity power supplies and easy front panel programming while large intelligent systems lead the market in sophisticated features including distributed emergency audio and are remarkably easy to configure and program. In addition to systems, Secutron™ also offers the most complete line of advanced detection industry with the advanced system features required by emerging fire codes and new protection design practices. Large intelligent networked systems support fully redundant network modularity, graphic display
annunciation/monitoring, building management system integration, programmable smoke control and multi-channel emergency communications across buildings, campuses or communities.
Secutron™ systems are also supported with the largest selection of detectors, signaling devices and accessory devices, including intelligent power supplies.

MMX Network Fire Detection & Alarm Control Unit Application
Secutron’s MMX not only integrates all sub-systems, including fire detection and alarm, audio/voice evacuation and HVAC/damper control, it is also designed with built-in BAC net support for seamless integration with Building Management Systems (BMS). Secutron’s MMX eliminates the need for expensive adder  modules, required by other systems, and supports both digital and analog input/output devices.

• Single intelligent SLC Loop that supports 60 points
• Points can be any combination of Intelligent Sensors or Modules
• Supports Photoelectric Sensors, Variable Heat Sensors and Multi–Sensor (Heat/Photo)
• Equipped with 2 line by 20 character back-lit LCD display, numerical keypad and an integrated UDACT/ Digital Communicator
• LCD display allows for 32 characters to be configured for user defined messages
• Digital Communicator can be configured for DACT or UDACT mode of operation
• Configurable via the front panel, PC Configurator, or remote dial up through the built-in modem
• Sensors can be configured as Alarm, Verified Alarm, Latching or Non-Latching Supervisory, Monitor and Trouble-Only
• Modules can be configured as Alarm, Latching Supervisory, Non-Latching Supervisory, Water Flow, Monitor, Trouble, Fire Drill Switch, Signal Silence Switch, Aux Disconnect Switch        and Buzzer Silence Switch
• Base unit is equipped with Four Class “B” (Style “B”) indicating circuits which may be configured as Class
  “A” (Style “Z”) using a Class “A” signal converter module
• Indicating Circuits may be configured as Silenceable or Non-Silenceable for both signals and strobes
• Built-in sync protocols for the following strobe manufacturers: Mircom, Amseco, System Sensor, Gentex, Faraday and Wheelock
• Relay contacts for Common Alarm, Auxiliary/ Alarm (Disconnectable), Common Supervisory and Common Trouble
• Configurable Signal Silence Inhibit, Auto Signal Silence and One-Man Walk Test
• Subsequent Alarm, Supervisory, and Trouble operation
• RS-485 Interface for Remote LED and LCD Annunciators,
• Positive Alarm Sequence
• Two event history logs comprised of a 200 event alarm log for alarm related events and a 200 event general log for all other events
• 5.5 Amp Power Supply
• Optional City Tie/Polarity Reversal module

Model Description
MR-2350-60-DR Single Loop 60 Point Intelligent Fire Alarm Control Unit with built-in UDACT/Digital Communicator
Optional Adder Modules
MR-2300-NC4 Four Indicating Circuit Class “A” Converter Module
MR-2300-PR Polarity Reversal/City Tie Module
Remote Annunciators
MR-2300-LCDR Remote LCD Annunciator
RAM-1016TZDS 16 Zone Remote LED Annunciator with trouble LEDs. Mounts in a MMX-BB-1001R enclosure.
RAM-1032TZDS 32 Zone Remote LED Annunciator with trouble LEDs. Mounts in a MMX-BB-1001R enclosure.
MMX-BB-1001R Red enclosure for RA-1000 Series Annunciators, Houses 1 module.
MR-2306-ATR 8 Zone Remote LED Annunciator
MR-2312-ATR 16 Zone Remote LED Annunciator
