Products Details

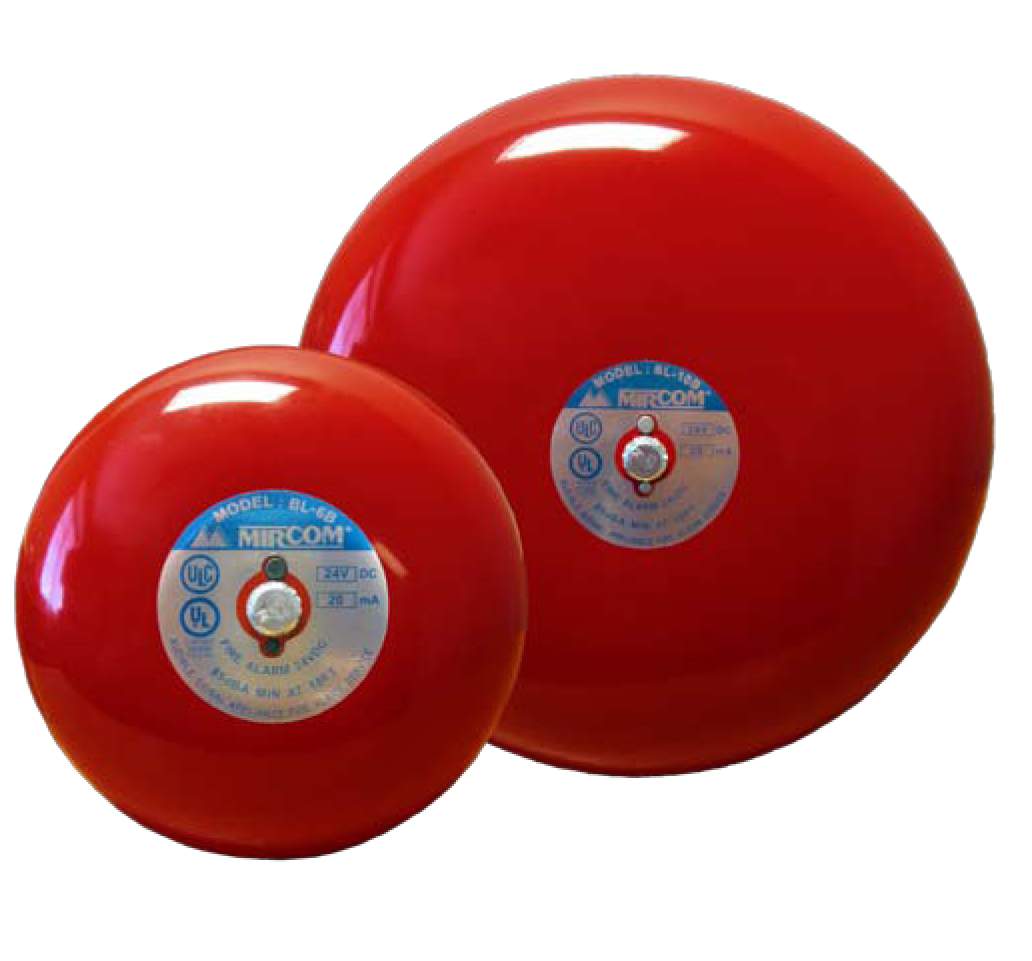

BL-6B_BL-10B

Applications:

General Application From the smallest business to the largest facility or campus, small conventional panels feature large capacity power supplies and easy front panel programming while large intelligent systems lead the market in sophisticated features including distributed emergency audio and are remarkably easy to configure and program. In addition to systems, Secutron™ also offers the most complete line of advanced detection industry with the advanced system features required by emerging fire codes and new protection design practices. Large intelligent networked systems support fully redundant network modularity, graphic display annunciation/monitoring, building management system integration, programmable smoke control and multi-channel emergency communications across buildings, campuses or communities. Secutron™ systems are also supported with the largest selection of detectors, signaling devices and accessory devices, including intelligent power supplies.

Download Files

• Low current draw (20 mA)
• 6 and 10 inch diameter steel shells for long termreliability
• RFI and EMF suppression prevents noise problems to the fire alarm control panel
• Polarized for DC supervision
• Pigtail connection
• Standard 4 inch square electrical box mounting
• Weatherproof backbox available for outdoor applications
• Red finish



Model Description Voltage Rated Current Sound Level at 10 ft. dB
BL-6B 6” Motorized Steel Bell 24 VDC 20 mA 85
BL-10B 10” Motorized Steel Bell 24 VDC 20 mA 85
