Double Decker

Applications:

The Double Decker fire cabinet provides a flexible solution for different users. Behind its double doors, it can hold two hose racks/reels or one of each. is suitable for use in outdoors open areas/indoors, industrial & commercial fire protection needs, such as manufacturing, airports, warehouse, auto repair shops, restaurants, malls, hospitals, cinemas, hotels and many others

  • The Double Decker fire cabinet provides a flexible solution for different users. Behind its double doors, it can hold two hose racks/reels or one of each
  • Standard design cabinet 800 x 1600 x 300 cm (WxHxD) for in-wall fitting as a recessed type.

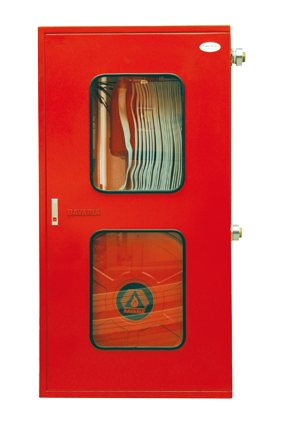

  • Double Decker is a steel double fire cabinet with one long door, placing two hosereels, one in the upper cabinet part followed by the hose reel below.
  • The cabinet door hinges enabling it to swing up to 180°, corrosion resistant type snap-in hings, European made.
  • The cabinet door is provided quick opening handle with full hand grip and close with two latching points.
  • The cabinet has four inlet holes (2 in upper & 2 in lower) for water feeding pipes sealed with polymer or rubber seals.
  • The fire cabinet carries photo luminescent sign that is crucial during emergency situations and power failure.

Cabinet type Double Decker
Cabinet Dimensions (wxhxd) 800 x 1600 x 300 mm (other variations are possible)
Cabinet Material Steel
Opening Door Right (standard) or left (option ), provides glass openings
Cabinet Steel Thickness 1.5 mm
Door Hings Corrosion resistant snap-in hings, European made
Cabinet Paint Finish Surface treatment and 100% electrostatic pure polyester red coating


Types of Hosereels:
  • Hosereel equipped with European made ¾ inch (19 mm) diameter reinforced rubber hose, EN694 approved.
  • Hosereel equipped with European made 1 inch (25 mm) diameter reinforced rubber hose, EN694 approved.
  • Hosereel equipped with German made 1½ inch (38 mm) diameter flat nylon hose with internal rubber lining, DIN 50049 / EN 10204 approved.
  • Hosereel equipped with German made 2½ inch (64 mm) diameter flat nylon hose with internal rubber lining, DIN 50049 / EN 10204 approved.

The figures show the movement of the hose reel with the arm allows the reel to swing completely outside of the cabinet allowing smooth hose retrieval in left and right directions without hose twisting

Technical Specifications:
Hosereel Types SHR- ¾ SHR-1 SHR-1½ SHR-2½
Hose Reel Diameter 650 mm / 580 mm
Hose Reel Swinging Range ‎0° - 180°‎
Hose Reel Material Steel according to DIN 1623
Hose Reel Paint Finish Surface treatment and 100% polyester coating

Hosereel Types SHR- ¾  / SHR-1
Water Way Manual Valve For Hose Reel
Water Way Material Nickle-Chrome Plated Brass
Water Way Diameter  1 inch (25mm)
Option Automatic Valve for Hose Reel


Standard Components
For Fire Cabinets with 64 mm (2 ½ inch) x 30 m / 38 mm (1½ inch) Diameter x 30 m Length
1 - DELIVERY HOSES
Type Bavaria Standard - Type 1
Country of Origin German made
Hose Diameter and Length 64 mm (2 ½ inch) x 30 m / 38 mm (1½ inch) x 30 m
Fabrication Flat nylon hose with internal rubber lining
Optimum Working Pressure Range 17 bar
Hose Bursting Pressure 50 bar
Hose Coupling Equipped with instantaneous coupling BS 366, 64 mm (2 ½ inch)
Approval DIN 50049 / EN 10204

Landing Valves (fire valves) with 30° Outlet - For hose diameter 64 mm (2 ½ inch)  / 38 mm (1½ inch)
Country of Origin German made
Inlet thread G 2½ A
Outlet Inst. female 2½”-Alu
Weight (kg) 2,700
Coupling Type 2.5 inch instantaneous coupling BS 336
Approval DIN 14461-3

BAVARIA water branchpipe for hose diameter 64 mm (2 ½ inch)  / 38 mm (1½ inch)
Type BAVARIA
Material High strength aluminium alloy
Operation Mode Full jet
Working Pressure Range Up to 16 bar
Max. Output 215 l/min when the ball valve is completely opened
Max. Throw Range 27 m @ nozzle pressure 6 bar
Coupling Type 2.5 inch instantaneous coupling BS 336


Standard Components
For Fire Cabinets with 19 mm ( ¾ inch) x 30 m / 25 mm (1 inch) Diameter x 30 m Length
1 - DELIVERY HOSES
Country of Origin European made
Hose Diameter and Length 19 mm ( ¾ inch) x 30 m / 25 mm (1 inch) x 30 m
Fabrication Reinforced Rubber hose
Max. Working Pressure Range 12 bar
Hose Bursting Pressure Over 42 bar
Hose Connection Bosch pressed collet
Approval EN694

Landing Valves (fire valves) with 34° Outlet - For hose diameter 25 mm (1inch)
Inlet thread G 1
Outlet male G 1 - Brass Nipple- for  hose diameter 25 mm (1 inch)  crimped  with a ( collar) ferrule
Weight (kg) 0.450


BAVARIA Multipurpose water nozzle - For hose diameter 19 mm ( ¾ inch) / 25 mm (1 inch)
Type BAVARIA
Country of Origin German made
Material Made of Copper alloy, and has external polymer cover, as well as it has a rubber ring in the front for impact protection
Operation Mode Multipurpose (jet and spray) nozzle
Flow Rate up to 72 l/min at 6 bar
Max. working Pressure 16 bar
Max. Throw Range Throw distance 21 m at 6 bar, at full jet
Hose Tail 1 inch


Options At Extra Cost

Angle Hose Valve is used as a Fire Dept. outlet connection
Hose Diameter ‎2½ inch‎
Material Brass
Material Type (RB) Rough Brass /
(PB)) Polished Brass (option
Inlet / Outlet a / ”½2  b ”½2
Connection type female x male
Approval UL and FM

Pressure reducing device angle valve
Adjustable restriction of residual pressures up to 175 lb = 80 kg. Locking pin device restricts full opening of valve by untrained personnel, pin may be removed by firefighters to allow full opening of valve.
Hose Diameter ‎2½ inch‎
Material Brass
Material Type (RB) Rough Brass /
(PB)) Polished Brass (option
Inlet / Outlet a / ”½2  b ”½2
Connection type female x male
Approval UL and FM

1 - Option at Extra Cost:  Multipurpose BAVARIA TYPHOON 230
Model TYPHOON-230
Country of Origin Germany
Operation Modes Full jet, spray and water curtain
Extra Advantage Variable flow
Inlet Fitting Tail ND 27.5 mm
Nominal Water Inlet Working Pressure 6 bar
Variable Flow Rate (l/min) Full Jet 140 (l/min) to 230 (l/min) (adjustable every 10 (l/min))
Spray Jet
Effective Throw Distances @ 6 bar Full Jet Depending on flow rate
Spray Jet Depending on flow rate
Spray Angle 0° to120°
Dimension (lxwxh) mm 258x100x233
Weight 1.5 kg


2 - Option at Extra Cost:  Multipurpose BAVARIA TYPHOON 400
Model TYPHOON-400
Country of Origin Germany
Operation Modes Full jet, spray and water curtain
Extra Advantage Variable flow
Inlet Fitting 64 mm (2 ½ inch) instantaneous coupling BS 336
Nominal Water Inlet Working Pressure (bar) 6
Variable Flow Rate Full Jet 130 (l/min), 235 (l/min) and 400 (l/min)
Spray Jet
Effective Throw Distances @ 6 bar Full Jet 26 m, 42m and 40 m
Spray Jet 11 m, 14 m and 16 m
Spray Angle 0° to120°
Dimension (lxwxh) mm 289x109x245
Weight 2.5 kg
Option at Extra Cost Shoulder Prop.


Hose Rack Canadian/USA made hose rack equipped with flat nylon hose with internal rubber lining (UL & FM approved)


Type HRk-1½
Rack Swinging Range 0° - 90°
Hose Diameter / Length 1½  inch  (38 mm) / 30 m
Working Pressure Range Optimum 5-12 bar
Hose Testing Pressure Over 17 bar (250 PSI)
Discharge Fitting Multipurpose water branchpipe nozzle
1½ inch (38 mm)
Accessories Angle valve 1½ inch (38 mm)
Hose Rack  Approval UL & FM Approved

Option: DELIVERY HOSE - Inside and Outside Rubber lined Fire Fighting Hose, Type 3
Origin Country   Germany
Fabrication   Inside and Outside Rubber lined Fire Fighting Hose, Type 3
Construction   Inside: very smooth for minimum friction loss
Jacket of 100 % high tenacity synthetic polyester yarn, circular woven, embedded in a rubber compound provides optimum protection of the jacket
High-quality Nitrile/PVC compound is forced through the jacket
Outside: longitudinal ribs for excellent abrasion resistance
Hose Coupling      Equipped with (2 ½  inch) instantaneous coupling BS 336.
Hose Diameter Inch 64   mm  (2½  inch)
Bursting Pressure bar 50 (DIN)
Working Pressure (1:3 Safety) bar 17 (DIN)
Working Pressure (1:4 Safety) bar 12
Weight (+/– 5 %) g/m 495
Wall Thickness  (+/– 0,2 mm) mm 2,3
Theoretical Tensile Strength thin kg 1.700   5.1
Approvals/Certificates   DIN 14811:2008-01+A2:2014-08
BS 6391:2009 Type 3
M.E.D. 96/98/EC
