SIGMA 60

Applications:

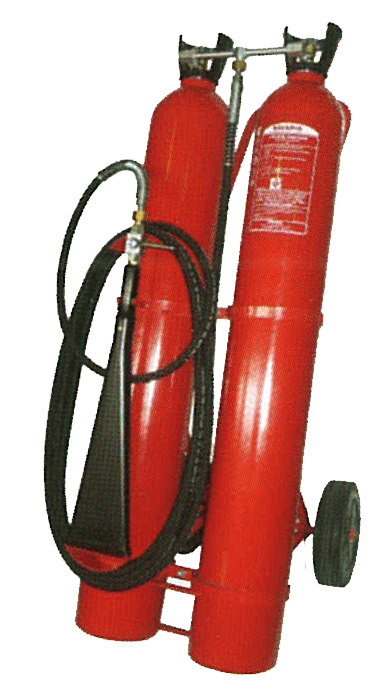

BAVARIA SIGMA 60 is a carbon dioxide fire extinguishing mobile unit effective in fighting flammable liquids and electric fires

Download Files

  • Suitable for Fighting flammable Liquids And Electric Fires.
  • Allow interruption and repeated operation.
  • Carbon dioxide is a clean agent that leaves no traces, thus ideal for fighting fires involving electronic & hi-tech equipment and medical engineering.
  • Supported on stable chassis with two hard rubber wheeled, two blows and clamps for exact of the bottle, for Easy operation and maneuvering.
  • Equipped with tube and snow pipe with ball valve.
  • High agility in use by 10 m long high pressure hose.
  • Brass wheel-type operating valve head complete with an overpressure safety valve.
  • Suitable for electrical systems up to 1.000 v, minimum distance 1m

Type Sigma-60
Fire Classes BE
Rating (DIN EN 1866 -1) 6x144B  (O.A) LE
Spray Duration Spray width approx 88.0/3-4
Operating Temperature Range -20°C up to +60°C
Extinguishing Agent CO2
Qty of Cylinders 2
Cylinder Seamless steel cylinder
Testing Pressure 250 bar
Bursting Pressure 450 bar
Valve Material Brass valve with overpressure safety valve
Paint Finish Red polyester coating
Approval Sp 95/93
Piece on pallet 1
Weight in kg Approx 222,00
Length (lxWxH) in mm Approx 1000x550x1500

Certified According to European Standard DIN/EN 1866
TÜV-certified pressure cylinder
CE marked
Management System certified according oh ISO 9001
