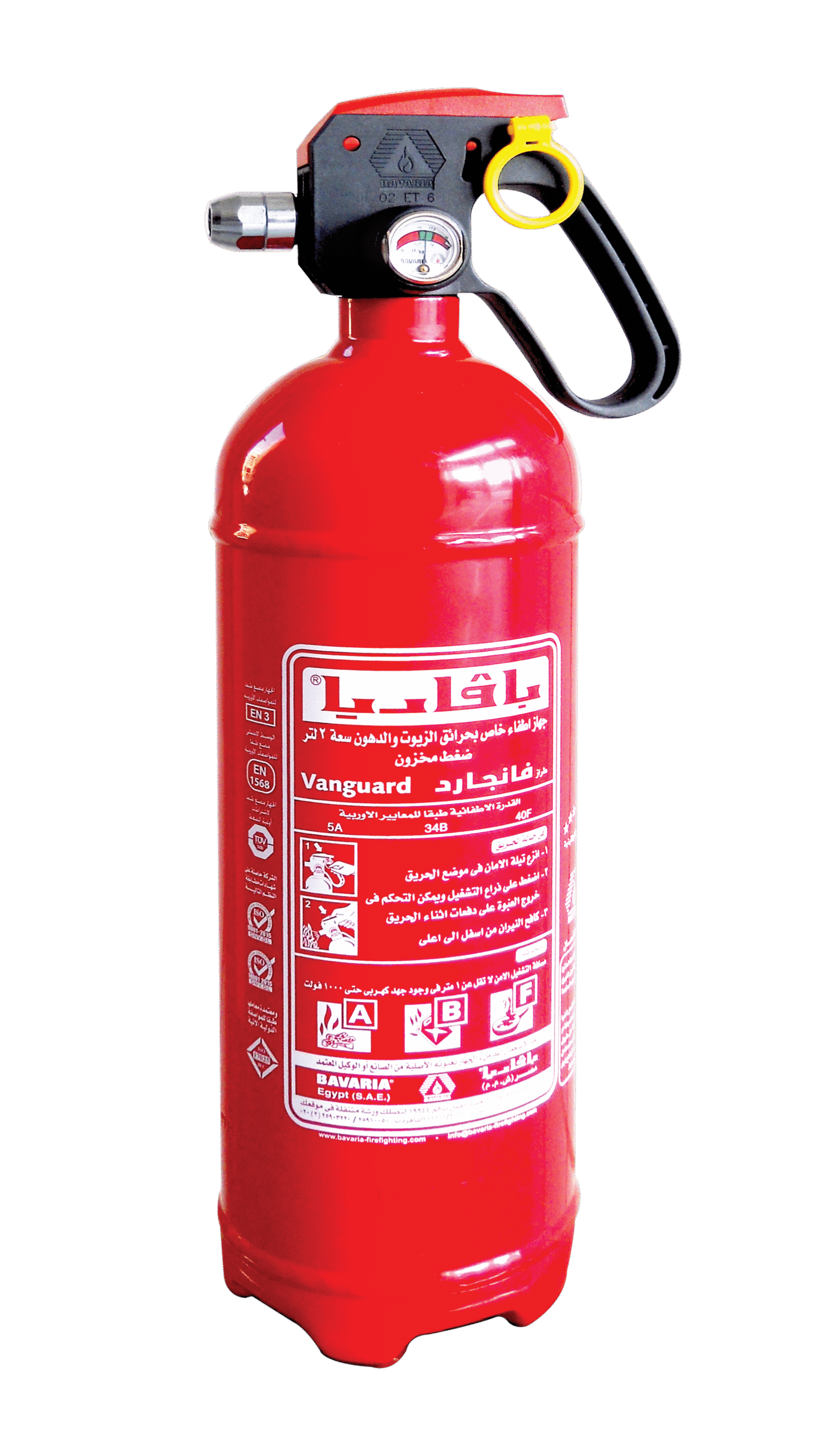

Bavaria Vanguard

Applications:
BAVARIA VANGUARD is designed for ‎protecting fire kitchens, ‎oil, fats and grease, and more.
Download Files
  • Features
  • Technical Specifications
  • High extinguishing efficiency
  • Filled with 2 l  wet chemical liquid, is designed for ‎protecting fire kitchens, ‎oil, fats and grease.
  • Full hand grip handle for best control and safety for one hand operation
  • Allows intermittent and repeated operation
  • Designed with a polymer valve
  • Equipped with pressure check valve
  • Equipped with a pressure gauge for instant pressure indication
  • internally coated with a special protective elastic polymer lining, affording full protection against corrosion
  • High quality surface treatment and red polyester coating
  • Supplied with special hanging wall bracket
Capacity 2 L
Extinguishing Rating 5A 34B 40F
Operating Temperature Range -30 °C to +60 °C
Testing Pressure 35 bar
Bursting Pressure over 70 bar
Valve Material Special engineered polymer
Shell Material DC 04 Steel according to DIN EN 10130
Extinguishing Agent Wet chemical liquid for oils and fats fires
Propellant Gas N2
Internal Lining Elastic polymer
Paint Finish Surface treatment and 100% polyester coating
Approx. Gross Weight 4.3 kg
Approx. Unit Dimension (lxwxh) 14.5 x 11.5 x 42.0‎ cm
The extinguishing media is certificated according to the current European Norms EN1568 and EN3
TÜV Approved Pressure Vessel
The Company is Certified according to Quality, Environment Management Systems ISO 9001, ISO 14001
Bavaria Laboratory Accredited According to the ISO/IEC 17025
