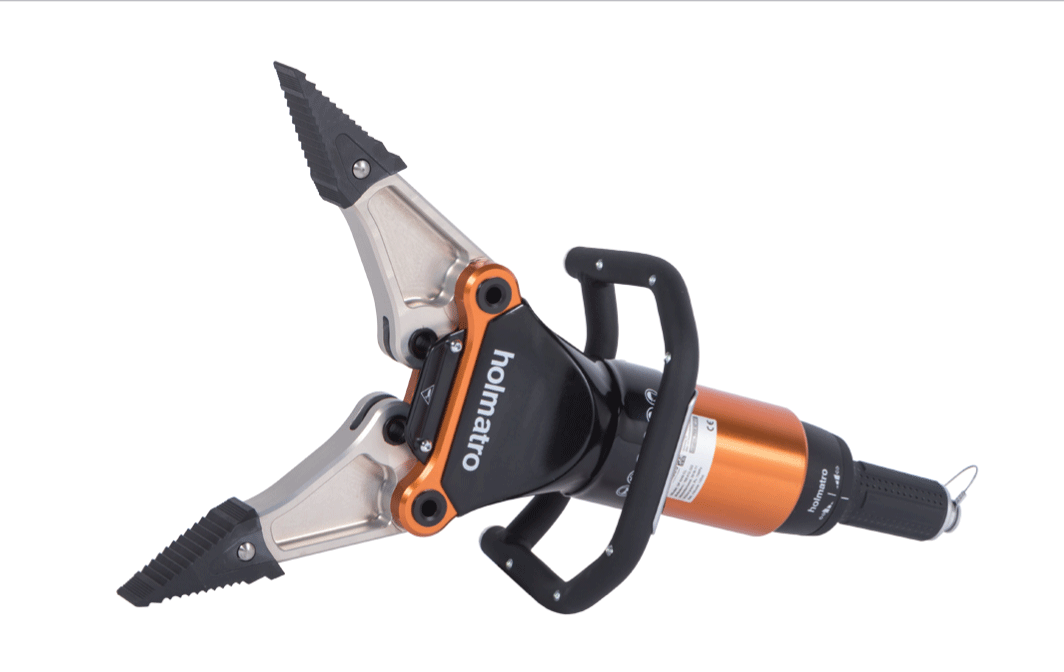

Core Spreader

Applications:
Holmatro’s 5000 series spreaders are designed with the rescuer in mind: lighter than ever, without concessions on performance. They are available for CORE systems with pump and hose or in Greenline battery-driven versions.
Download Files
  • Featuers
  • CORE™ Technology
  • SP 5240
  • SP 5240 CL
  • SP 5250
  • SP 5260
  • SP 5280

Lightweight

  • Weight reduction thanks to new materials, component integration and intelligent design
  • Easy to carry and handle, reducing physical burden

Effective profile on the spreading tips

  • Perfect grip in every situation

Ergonomic carrying handle

  • New design increases operator comfort in various working positions

New LED lighting in carrying handle

  • No less than 6 LED lights with higher light output
  • Rescuers can start their job right away, both during the day and at night, without working in their own shadow

Speed Valve on CORE models

  • When unloaded, the arms open quickly to the desired distance to speed up spreader positioning.

Compact Lightweight Spreader
SP 5240 CL

  • Developed entirely on the basis of practical application this spreader can do everything required to extricate a trapped victim, while weighing under 10 kg. And although we did not aim to meet the international standards, it fully complies with NFPA 1936 and – except for the spreading distance – with EN 13204
What is CORE™ Technology?
CORE™ Technology (Coaxial Rescue Equipment Technology) refers to the hoses, couplers (and valves) of a rescue system. In other words the way hydraulic oil is directed from the pump to the tool and vice versa. A traditional dual hose system consists of a separate pressure and return hose connecting pump and rescue tool. A CORE™ system consists of only one hose: a high pressure inner hose inside a low pressure outer hose. The hydraulic principle and tool performance of CORE™ Technology and traditional technology are of course identical.
Why CORE™ Technology?
CORE™ Technology is a revolutionary turning point in rescue tool technology and definitely more than a new piece of equipment. It allows you, as a rescuer, to rethink and simplify your extrication techniques and your standard operating procedures. Once working with CORE™, you will discover the unprecedented benefits it offers. Compared to working with a traditional system, working with CORE™ is safer, easier & quicker.
Safer
One hose system (hose in hose) – protected power
increased safety for the rescuer; high pressure hose inside and protected by low pressure outer hose

CORE™ Technology is safer, more user–friendly, saves time and manpower
Para-aramid fiber reinforced hose (no steel) Safety couplers
– no risk of kinking or pinholes – one step auto-lock coupler   – two step uncoupling system
CORE™ para-aramid reinforced Dual steel reinforced – couples and locks in just one push – accidental uncoupling  impossible during operation
Hose testing According to international safety norms
– all testing according to every appropriate safety norm – 4:1 safety ratio for both pressure and return line
– according to EN 13204 and NFPA 1936 (Certificates by independent body available)



Easier & Quicker
Simple set up Simple set up Changing tools under flow during use
– connect CORE™ hose to pump or tool with or without pump running – change tools any time without operating a release valve on the pump
       saves precious manpower
Para-aramid reinforced hose
– no kinking – easy to handle / manoeuvre

– easy to roll and unroll – light weight

– easy storage Maintenance friendly
  – less couplers
– less hoses
– no pigtail hoses on tools
– no release valves on pumps
– all hoses with standard hose binders for easy storage
Unique CORE™ couplers Coupler mounted directly on the tools
– 360° rotating couplers on tool and on pump; no hose entanglement – no pigtail hoses necessary – tool couplers not lying in the dirt – no swinging couplers
– CORETM Technology

  – compact, space saving in rescue vehicle – Dual hoses

– maintenance friendly flat face couplers
One hand coupling


– easy to clean – no dirt inside couplers
Spreader | SP 5240
article number 150.012.324
model SP 5240
equipped with (connector type) CORE
short description Spreader
max. working pressure bar/Mpa 720 / 72
spreading distance mm 725
pulling distance mm 610
max. spreading force kN/t 280 / 28.6
theoretical calculated spreading force kN/t 850 / 86.7
min. spreading force (EN 13204) kN/t 41 / 4.2
max. spreading force, 25mm/1in from the tip kN/t 93 / 9.5
max. squeezing force kN/t 59 / 6
max. pulling force kN/t 47 / 4.8
required oil content (effective) cc 226.4
hydraulic oil type ISO-L HV VG 15/22
weight, ready for use kg 14.5
temperature range °C 35
dimensions (AxBxC) mm 815 x 286 x 217
EN 13204 classification AS41/725-14.5
NFPA 1936, HPF kN/t 47 / 4.8
NFPA 1936, HSF kN/t 70 / 7.1
NFPA 1936, LPF kN/t 25 / 2.5
NFPA 1936, LSF kN/t 38 / 3.9
NFPA 1936 compliant Yes
Safety factors / tests
hydraulic safety factor 2:01
endurance test tool 1000 cycles of opening and closing while arms are loaded
endurance test dead man’s handle 6000 cycles

Accessories
Cutting Tips, Set 150.006.474
Spreading Tips, Set 150.006.475
Pulling Attachments, Set 150.182.274
Accessories Set in Case 150.182.288
Pulling Chains Set 150.582.152
Pulling Chains, Set in Case 150.582.021
Spreader | SP 5240 CL
article number 150.012.323
model SP 5240 CL
equipped with (connector type) CORE
short description Spreader
max. working pressure bar/Mpa 720 / 72
spreading distance mm 510
pulling distance mm 393
max. spreading force kN/t 131 / 13.4
theoretical calculated spreading force kN/t 850 / 86.7
min. spreading force (EN 13204) kN/t 40 / 4.1
max. spreading force, 25mm/1in from the tip kN/t 70 / 7.1
max. squeezing force kN/t 47 / 4.8
max. pulling force kN/t 47 / 4.8
required oil content (effective) cc 124
hydraulic oil type ISO-L HV VG 15/22
weight, ready for use kg 9.6
temperature range °C 35
dimensions (AxBxC) mm 685 x 274 x 207
EN 13204 classification 47 / 4.8
NFPA 1936, HPF kN/t 53 / 5.4
NFPA 1936, HSF kN/t 24 / 2.4
NFPA 1936, LPF kN/t 35 / 3.6
NFPA 1936, LSF kN/t Yes
NFPA 1936 compliant 150.012.323



Safety factors / tests
hydraulic safety factor 2:01
endurance test tool 1000 cycles of opening and closing while arms are loaded
endurance test dead man’s handle 6000 cycles

Standard supplied with
• Carrying handle with integrated LED lighting
• Built-in Speed Valve
• Redesigned, ergonomic control handle with improved grip
• CORE Technology: quicker, safer, easier

Accessories
Spreading Tips, Set 150.006.473
Pulling Attachments, Set 150.182.273
Accessories, Set in Case 150.182.289
Pulling Chains Set 150.582.152
Pulling Chains, Set in Case 150.582.021
Spreader | SP 5250
article number 150.012.324
model SP 5250
equipped with (connector type) CORE
short description Spreader
max. working pressure bar/Mpa 720 / 72
spreading distance mm 725
pulling distance mm 610
max. spreading force kN/t 366 / 37.3
theoretical calculated spreading force kN/t 670 / 68.3
min. spreading force (EN 13204) kN/t 51 / 5.2
max. spreading force, 25mm/1in from the tip kN/t 127 / 13
max. squeezing force kN/t 135 / 13.8
max. pulling force kN/t 67 / 6.8
required oil content (effective) cc 291
hydraulic oil type ISO-L HV VG 15/22
weight, ready for use kg 15.9
temperature range °C 35
dimensions (AxBxC) mm 826 x 285 x 215
EN 13204 classification AS51/725-15.9
NFPA 1936, HPF kN/t 67 / 6.8
NFPA 1936, HSF kN/t 97 / 9.9
NFPA 1936, LPF kN/t 31 / 3.2
NFPA 1936, LSF kN/t 46 / 4.7
NFPA 1936 compliant Yes
Safety factors / tests
hydraulic safety factor 2:1
endurance test tool 1000 cycles of opening and closing while arms are loaded
endurance test dead man’s handle 6000 cycles

Standard supplied with
• Carrying handle with integrated LED lighting
• Built-in Speed Valve
• Redesigned, ergonomic control handle with improved grip
• CORE Technology: quicker, safer, easier

Accessories
Cutting Tips, Set 150.006.474
Spreading Tips, Set 150.006.475
Pulling Attachments, Set 150.182.274
Accessories Set in Case 150.182.288
Pulling Chains Set 150.582.152
Pulling Chains, Set in Case 150.582.021
Spreader | SP 5260
article number 150.012.325
model SP 5260
equipped with (connector type) CORE
short description Spreader
max. working pressure bar/Mpa 720 / 72
spreading distance mm 822
pulling distance mm 701
max. spreading force kN/t 522 / 53.2
theoretical calculated spreading force kN/t 650 / 66.3
min. spreading force (EN 13204) kN/t 62 / 6.3
max. spreading force, 25mm/1in from the tip kN/t 148 / 15.1
max. squeezing force kN/t 127 / 13
max. pulling force kN/t 82 / 8.4
required oil content (effective) cc 384
hydraulic oil type ISO-L HV VG 15/22
weight, ready for use kg 19.6
temperature range °C 35
dimensions (AxBxC) mm 900 x 322 x 223
EN 13204 classification BS62/822-19.6
NFPA 1936, HPF kN/t 82 / 8.4
NFPA 1936, HSF kN/t 117 / 11.9
NFPA 1936, LPF kN/t 37 / 3.8
NFPA 1936, LSF kN/t 58 / 5.9
NFPA 1936 compliant Yes



Safety factors / tests
hydraulic safety factor 2:1
endurance test tool 1000 cycles of opening and closing while arms are loaded
endurance test dead man’s handle 6000 cycles

Standard supplied with
• Carrying handle with integrated LED lighting
• Built-in Speed Valve
• Redesigned, ergonomic control handle with improved grip
• CORE Technology: quicker, safer, easier

Accessories
Cutting Tips, Set 150.006.466
Spreading Tips, Set 150.006.472
Pulling Attachments, Set 150.182.275
Accessories, Set in Case 150.182.290
Pulling Chains 150.582.261
Pulling Chains, Set in Case 150.582.020
Spreader | SP 5280
article number  150.012.326
model  SP 5280
equipped with (connector type)  CORE
short description  Spreader
max. working pressure bar/Mpa 720 / 72
spreading distance mm 662
pulling distance mm 538
max. spreading force kN/t 463 / 47.2
min. spreading force (EN 13204) kN/t 83 / 8.5
max. spreading force, 25mm/1in from the tip kN/t 183 / 18.7
max. squeezing force kN/t 159 / 16.2
max. pulling force kN/t 99 / 10.1
required oil content (effective) cc 384
hydraulic oil type ISO-L HV VG 15/22
weight, ready for use kg 19.4
temperature range °C 35
dimensions (AxBxC) mm 801 x 322 x 220
EN 13204 classification CS83/662-19.4
NFPA 1936, HPF kN/t 99 / 10.1
NFPA 1936, HSF kN/t 142 / 14.5
NFPA 1936, LPF kN/t 53 / 5.4
NFPA 1936, LSF kN/t 74 / 7.5
NFPA 1936 compliant Yes
Safety factors / tests
hydraulic safety factor 2:1
endurance test tool 1000 cycles of opening and closing while arms are loaded
endurance test dead man’s handle 6000 cycles

Standard supplied with
• Carrying handle with integrated LED lighting
• Built-in Speed Valve
• Redesigned, ergonomic control handle with improved grip
• CORE Technology: quicker, safer, easier

Accessories
Cutting Tips, Set 150.006.466
Spreading Tips, Set 150.006.472
Pulling Attachments, Set 150.182.275
Accessories, Set in Case 150.182.290
Pulling Chains 150.582.261
Pulling Chains, Set in Case 150.582.020
