Foam Jet Maximus

Applications:

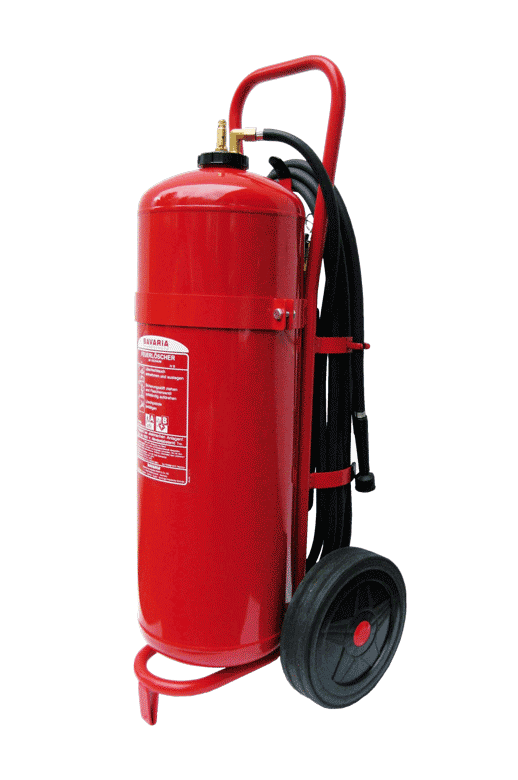

BAVARIA FOAMjet Maximus fire extinguisher with its stainless steel bright elegant shape is optimum for use in petrol stations, boiler rooms, designed for protection against fires of flammable solvents
Download Files
  • Feature
  • Description
  • Supreme extinguishing efficiency
  • A one man-operation unit
  • Allows interruption and repeated operation
  • Equipped with a 5 or 10 m reinforced rubber hose for easy manoeuvring
  • The cylinder is mounted on a chassis with two plastic wheels with rubber tread on the steel rims- guarantees excellent stability and agility
  • Massive cylinder with central opening and without weld Large reserves opening facilities the maintenance
  • Pressure regulator ensures uniform application of pressure of 13 bar
  • High quality brass valve with a black coated aluminium cap nut and equiped with over-pressure safety valve
  • Equipped with an external 3 l nitrogen bottle
  • Excellent and durable corrosion protection by polyester coating of the body (cylinder)
Capacity 50 l (SK Maximus) 50 l (SF Maximus)
Fire Classes A IV B A IV B
Operating Temperature Range +5 °C to +60 °C -30° C to +60° C (with salts and anti-freeze components)
Testing Pressure 31.5 bar 31.5 bar
Bursting Pressure Over 70 bar Over 70 bar
Valve Material Brass
Shell Material Steel according to EN 10028-3
Extinguishing Agent AFFF Foam mixing instantly at operation AFFF Pre-mixed
Reinforced Rubber Hose 10 m length 10 m length
External Pressure Cylinder 3 l 3 l
Propellant Gas N2 N2
External Cylinder Test Pressure 160 bar 160 bar
Approx Gross Weight 88.0 kg 94.0 kg

Warranty:

Period of Warranty 2 Years
Coverage of the Warranty Against material failure and production defects
Method of Warranty Coverage Limited to the replacement of the defected part or product after verification that the failure is covered by the scope of the warranty
Warranty Exclusions Failures due to misuse, mishandling, or inspection or repair by an unauthorized dealer or entity
