• Unique Speed Valve
– Allows for faster, more efficient tool placement and thus shortens required extrication time
– Increases opening speed when working pressure is below 150 bar
• Rotating cross heads
– Easy positioning and perfect grip in every situation
• Working as a team
– Larger model can be placed in the opening created by the smaller model or by any spreader
• Full range of accessories
– Provides multifunctional applications
• Snap-lock system for accessories
– Changing of accessories without the use of tools within Seconds
• Proportional operation handle
– Allows for precise and accurate spreading action
| What is CORE™ Technology? | ||||||
| CORE™ Technology (Coaxial Rescue Equipment Technology) refers to the hoses, couplers (and valves) of a rescue system. In other words the way hydraulic oil is directed from the pump to the tool and vice versa. A traditional dual hose system consists of a separate pressure and return hose connecting pump and rescue tool. A CORE™ system consists of only one hose: a high pressure inner hose inside a low pressure outer hose. The hydraulic principle and tool performance of CORE™ Technology and traditional technology are of course identical. |  |
|||||
| Why CORE™ Technology? | ||||||
| CORE™ Technology is a revolutionary turning point in rescue tool technology and definitely more than a new piece of equipment. It allows you, as a rescuer, to rethink and simplify your extrication techniques and your standard operating procedures. Once working with CORE™, you will discover the unprecedented benefits it offers. Compared to working with a traditional system, working with CORE™ is safer, easier & quicker. |  |
 |
||||
| Safer | ||||||
| One hose system (hose in hose) – protected power | ||||||
| increased safety for the rescuer; high pressure hose inside and protected by low pressure outer hose | ||||||
 |
 |
 |
||||
| CORE™ Technology is safer, more user–friendly, saves time and manpower | ||||||
| Para-aramid fiber reinforced hose (no steel) | Safety couplers | |||||
| – no risk of kinking or pinholes | – one step auto-lock coupler – two step uncoupling system | |||||
 |
 |
 |
 |
|||
| CORE™ para-aramid reinforced | Dual steel reinforced | – couples and locks in just one push | – accidental uncoupling impossible during operation | |||
| Hose testing | According to international safety norms | |||||
| – all testing according to every appropriate safety norm |  |
– 4:1 safety ratio for both pressure and return line – according to EN 13204 and NFPA 1936 (Certificates by independent body available) |
 |
|||
| Easier & Quicker | |||||||||||||
| Simple set up | Simple set up Changing tools under flow during use | ||||||||||||
| – connect CORE™ hose to pump or tool with or without pump running | – change tools any time without operating a release valve on the pump | ||||||||||||
 |
 |
 |
 |
saves precious manpower |
|||||||||
| Para-aramid reinforced hose | |||||||||||||
| – no kinking | – easy to handle / manoeuvre | ||||||||||||
 |
 |
 |
 |
||||||||||
| – easy to roll and unroll | – light weight | ||||||||||||
 |
 |
 |
|||||||||||
| – easy storage | Maintenance friendly | ||||||||||||
 |
– less couplers – less hoses – no pigtail hoses on tools – no release valves on pumps |
||||||||||||
| – all hoses with standard hose binders for easy storage | |||||||||||||
| Unique CORE™ couplers | Coupler mounted directly on the tools | ||||||||||||
| – 360° rotating couplers on tool and on pump; no hose entanglement | – no pigtail hoses necessary | – tool couplers not lying in the dirt | – no swinging couplers – CORETM Technology |
||||||||||
 |
 |
 |
 |
 |
|||||||||
 |
– compact, space saving in rescue vehicle | – Dual hoses | |||||||||||
 |
 |
 |
|||||||||||
| – maintenance friendly flat face couplers | |||||||||||||
| One hand coupling | |||||||||||||
 |
 |
 |
 |
||||||||||
 |
|||||||||||||
| – easy to clean | – no dirt inside couplers | ||||||||||||
| article number | 150.032.106 |  |
|
| model | TR 5340 | ||

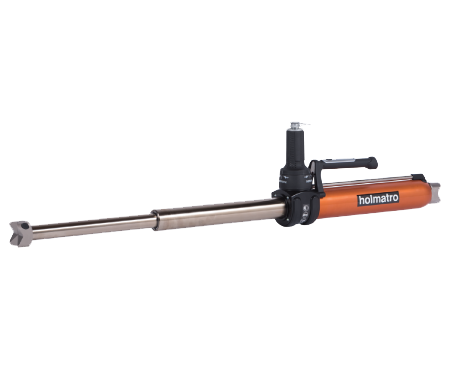

| short description | Telescopic Ram | ||
| equipped with (connector type) | CORE | ||
| max. working pressure | bar/Mpa | 720 / 72 | |
| spreading stroke 1st plunger | mm | 150 | |
| spreading stroke 2nd plunger | mm | 125 | |
| total spreading stroke | mm | 275 | |
| retracted length | mm | 335 | |
| extended length | mm | 610 | |
| max. spreading force 1st plunger | kN/t | 217 / 22.1 | |
| max. spreading force 2nd plunger | kN/t | 101 / 10.3 | |
| required oil content (effective) | cc | 525 | |
| hydraulic oil type | ISO-L HV VG 15/22 | ||
| number of plungers | 2 | ||
| weight, ready for use | kg | 9.2 | |
| temperature range | °C | 35 | |
| dimensions (AxBxC) | mm | 280 x 109 x 335 | |
| EN 13204 classification | TR217/150-101/125-9.2 | ||
| EN 13204 compliant | Yes | ||
| NFPA 1936, HSF | kN/t | 217 / 22.1 | |
| NFPA 1936, LSF | kN/t | 101 / 10.3 | |
| NFPA 1936 compliant | Yes |
| Safety factors / tests | |
| hydraulic safety factor | 2:1 |
| endurance test tool | 1000 cycles of spreading while the tool is loaded |
| endurance test dead man’s handle | 6000 cycles |
Standard supplied with
• Carrying handle with integrated LED lighting
• Built-in Speed Valve
• Redesigned, ergonomic control handle with improved grip
• CORE Technology: quicker, safer, easier
