Type

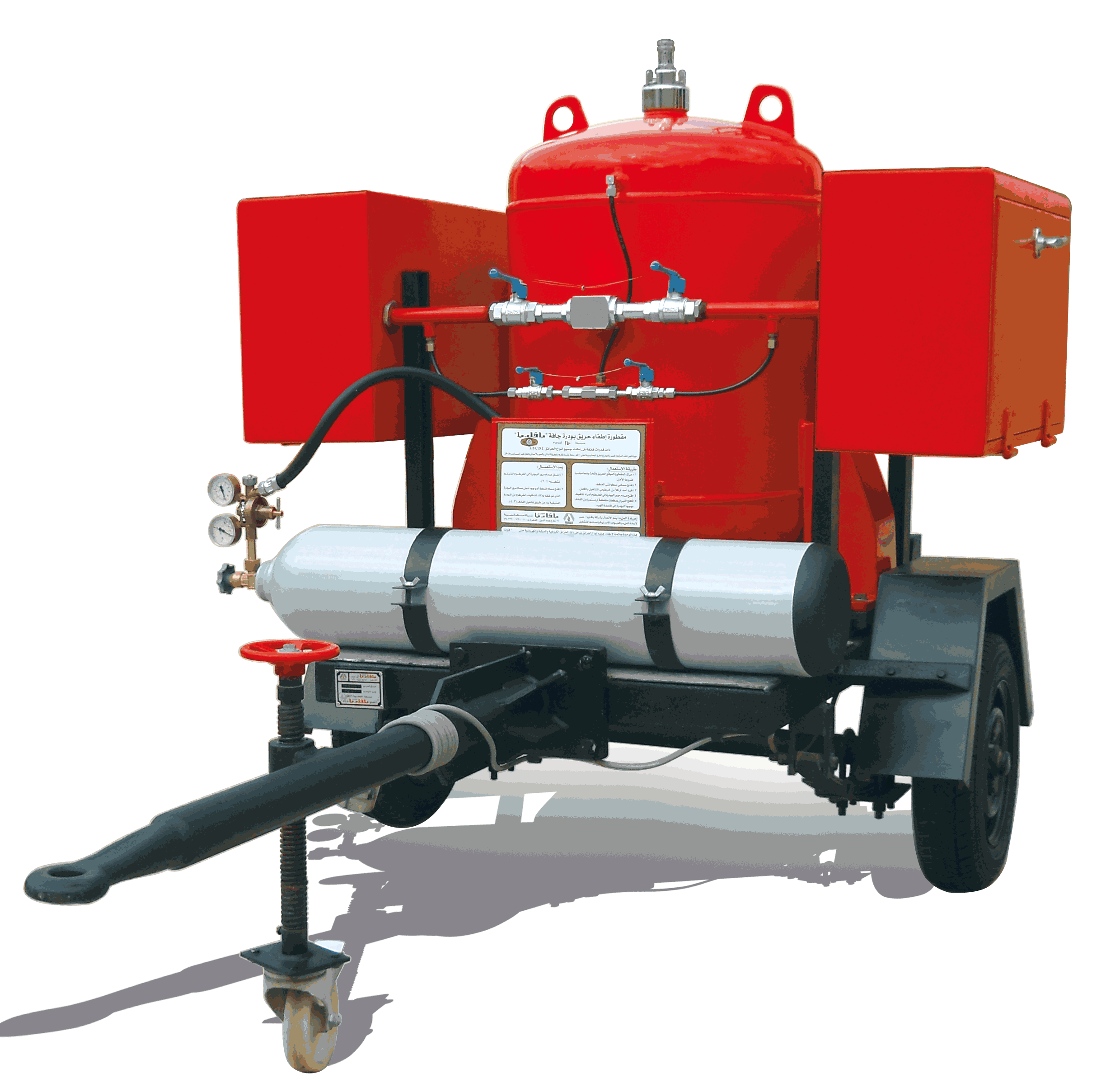

TORNADO-CTR 250

Chassis

Manufactured of

Steel channel sections covered by welded checkered plates

Axle

One axle of 1 ton capacity

Draw Bar

Provided with eye hook suitable for towing vehicles

Drop-leg

Provided at rear

Down Screw Wheel

Vertically adjustable with a manual brake

Rear Lights

Equipped

Wiring

Provided with cable and plug for connection with the electric system of the towing vehicle

Mudguards and Rear Bumper

Equipped

Allowed Speed

Up-to 80 km/h on asphalt roads

Extra Advantage

Lockers

Equipped with two steel side lockers for storage of discharge hoses

Option

Surface Treatment

Galvanized under carriage upon request at extra cost

Braking System

Upon request at extra cost

Powder Unit

Capacity

250 kg

Fire Classes

ABC

Working temperature range

-20 °C to 70 °C

Operating Head Material

Chrome plated brass alloy with over pressure safety valve

Container Material

steel

Discharge Fittings

2 x 20 m hose with special powder pistol

Extinguishing Agent

MAP-based

Pressure Cylinder(s)

1 x 40 l

Propellant Gas

N2

Cylinder Test Pressure

250 bar

Paint Finish

Surface treatment and coating

Container

Testing Pressure

35 bar

Bursting Pressure

Over 70 bar

Inspection Top Opening

Equipped

Bottom Opening

Equipped for maintenance

Pipes

System

Valves

Provided with two ball valves for each hose, one for operation and the other for cleaning and pressure release after operation

Pressure Regulating Unit

The trailer is equipped with two pressure gauges, one for

the pressure cylinder(s), and the other for the powder container.

Option

Tarpaulin protective cover for weather protection upon request at extra cost
